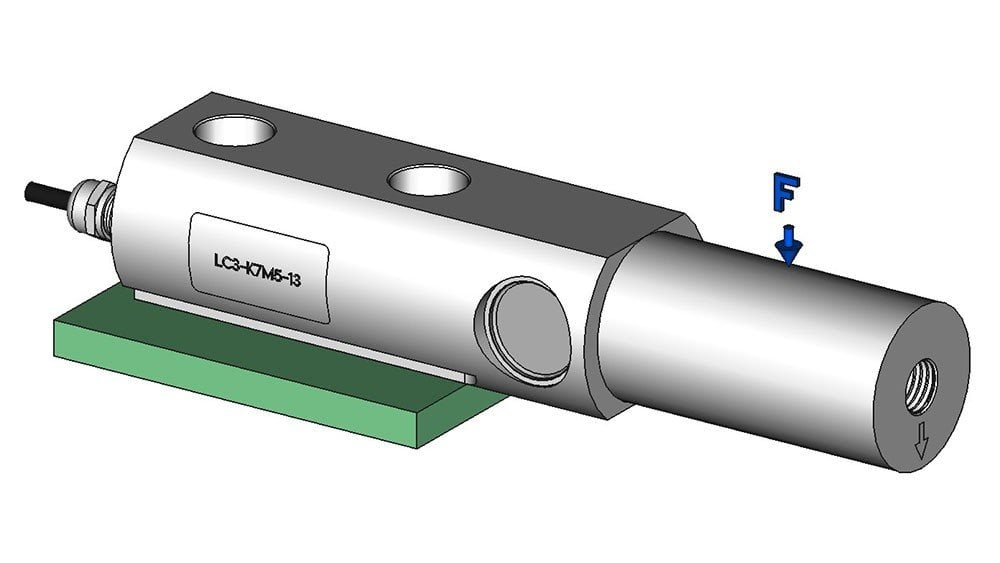

LC3 Shear Beam Load Cell

LC3 Load Cells

This Shear beam load cells are mainly used in the construction of Fodder Mixer where the load cells are mounted between the chassy and the tank.

They guarantee excellent accuracy combined with remarkable ease of assembly.

Cell Type Shear Beam
Min Capacity in Kg 7.500
Max Capacity in Kg 12.500
Signal Type 2 m/V
Measuring Element Material Stainless Steel
Applications
  • Feed Mixers
  • Grain Carts
  • Forage Wagons
  • Balers
  • Bales Wrapper
  • Seed Spreaders
  • Manure Spreaders
  • Mineral Spreaders
Ask about this product
